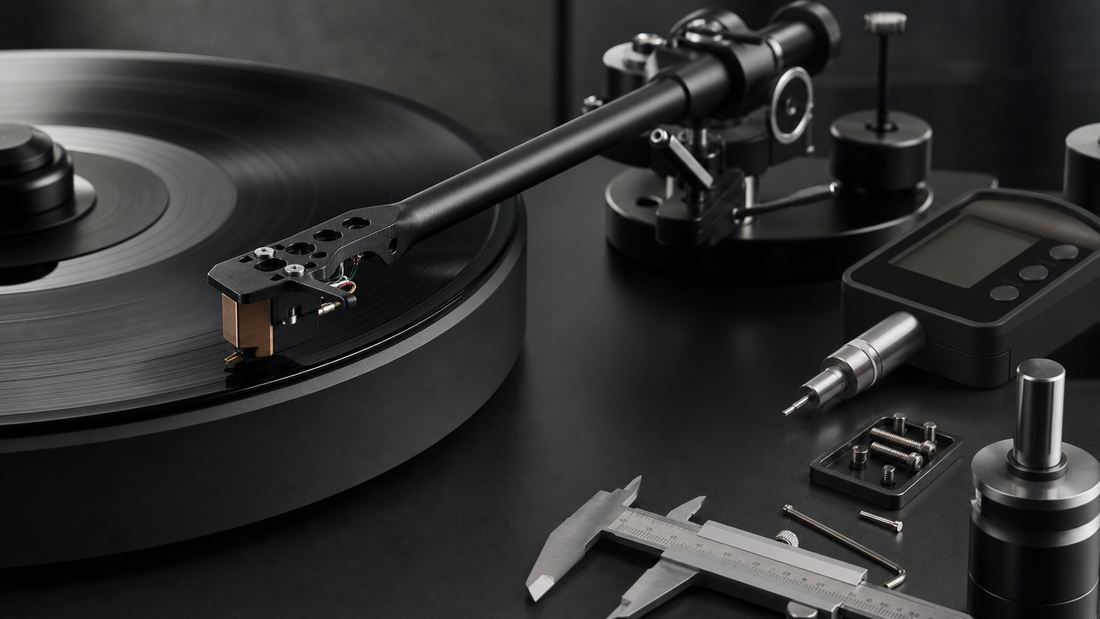

Turntable Tonearm Specifications for OEM Buyers: Tracking Force, Anti-Skate, and Cartridge Compatibility



For an OEM buyer, a tonearm is not a decorative feature or a single line in a product specification. It is a mechanical system that must hold the cartridge in the correct position, apply a controlled vertical tracking force, manage inward skating force, move with low and repeatable friction, and remain compatible with the intended cartridge throughout production.

If these requirements are described only as “adjustable counterweight” or “MM cartridge compatible,” suppliers may interpret the brief differently. One sample may perform well, while production units vary because the acceptable cartridge mass, counterweight range, bearing condition, alignment method, and inspection procedure were never defined.

This guide explains how brands, importers, and distributors can turn turntable tonearm specifications into a practical OEM/ODM control plan.

1. Define the Cartridge System Before Selecting Features

Tonearm decisions should begin with the approved cartridge family and the intended product role. A fixed-cartridge integrated Record Player, a component-style Vinyl Turntable with a replaceable cartridge, and a platform designed for future cartridge upgrades require different controls.

The product brief should identify:

• The supplied cartridge manufacturer and model, or an approved equivalent list
• Cartridge type and electrical requirements
• Cartridge body mass and mounting format
• Recommended vertical tracking force range
• Stylus replacement policy and approved stylus models
• Whether the cartridge is factory-fixed, user-replaceable, or dealer-serviceable
• Whether the headshell is integrated, removable, or based on a universal connector
• The output mode, including phono level, line level, or switchable output

Do not use “compatible with standard cartridges” as a complete requirement. Cartridge bodies differ in mass, height, mounting geometry, connector arrangement, and compliance. The tonearm must also be able to balance the intended cartridge-and-headshell combination and preserve suitable stylus geometry at record height.

2. Specify Vertical Tracking Force as a Controlled Range

Vertical tracking force, or VTF, is the downward force applied by the stylus to the groove. The correct target is determined primarily by the cartridge manufacturer. It should not be selected by appearance, by a generic tonearm value, or by copying a competitor’s setting.

Too little force can reduce stable groove contact and increase mistracking. Excessive force can load the stylus suspension beyond the intended operating condition. For OEM production, the important issue is therefore not simply whether the counterweight dial shows a number; it is whether the measured force at the stylus falls within the approved range.

A useful specification includes four separate items:

1. Cartridge operating range: the range published or approved for the cartridge.
2. Factory target: the nominal value used during assembly and inspection.
3. Production tolerance: the allowed deviation around that target.
4. Adjustment capacity: the force range the tonearm can deliver with the approved cartridge mass range.

For example, if the cartridge maker approves a particular VTF interval, the factory target can be placed within that interval with a tolerance supported by measurement-system capability. The actual numbers should come from the approved cartridge data and validation results, not from a universal template.

The golden sample should record the measured VTF using a calibrated stylus force gauge at the record playing height. Buyers should also define whether the product ships fully adjusted, requires user balancing, or uses a fixed factory setting. The quick-start guide, counterweight scale, and inspection instruction must describe the same process.

3. Treat Counterweight Range as a Compatibility Requirement

A counterweight has two jobs: balancing the tonearm and applying the required tracking force after balance. Its usable range depends on the cartridge mass, headshell mass, mounting hardware, tonearm geometry, and counterweight position.

The OEM specification should state the minimum and maximum approved mass of the complete front-end assembly. That assembly includes the cartridge, headshell where removable, mounting screws, nuts, and any spacer. A nominal cartridge weight alone is insufficient.

Verify the following on the lightest and heaviest approved combinations:

• The arm can reach neutral balance without the counterweight becoming loose or contacting another part
• The target VTF can be set with adequate adjustment margin
• The counterweight does not interfere with the dust cover, hinge area, or plinth
• The rear of the arm remains mechanically secure during transport
• Any printed tracking-force scale correlates acceptably with a calibrated gauge

If accessory counterweights are needed for heavier cartridges, list their part numbers, mass ranges, packaging method, and user instructions. Compatibility should be an engineered matrix, not an informal sales statement.

4. Define Anti-Skate by Mechanism and Verification Method

On a pivoted tonearm, stylus-and-groove friction creates an inward-directed skating tendency. Anti-skate, also called bias compensation, applies an opposing force. Many turntable instructions begin by setting anti-skate to approximately the same indicated value as VTF. This is a setup starting point, not proof that two printed dial values create perfectly matched forces under every condition.

The result is influenced by tonearm geometry, mechanism accuracy, stylus profile, groove modulation, friction, and record position. For an OEM program, specify both the mechanism and the verification approach.

Common mechanisms include:

• Calibrated spring or magnetic adjustment dials
• Thread-and-weight systems with defined groove positions
• Fixed compensation designed for a fixed cartridge and VTF
• No adjustment, where the platform architecture and intended use justify it

An adjustable control should have clear indexing, repeatable movement, and enough range for the approved VTF settings. A fixed system should be validated with the exact production cartridge, tonearm geometry, and target tracking force.

Avoid using a blank record surface as the only acceptance method. Its friction condition does not reproduce a modulated groove. A stronger validation plan combines the supplier’s documented setup method with channel tracking tests, listening checks for asymmetric mistracking, and comparison against the approved golden sample. The factory test method should state the record or test medium, tonearm position, output measurement, pass/fail rule, and required equipment.

5. Match Tonearm Effective Mass and Cartridge Compliance

Cartridge compatibility is also a dynamic mechanical question. The cartridge suspension has compliance, while the tonearm, headshell, cartridge, and fasteners contribute moving mass. Together they form a resonant system.

Ortofon’s cartridge-selection guidance identifies total tonearm-system mass and cartridge compliance as key matching variables and provides a resonance calculation. Its published guidance places the preferred resonance region at approximately 7 to 12 Hz, with 10 Hz recommended. This is a useful engineering reference, but the calculation is only as reliable as the input data and the compliance measurement convention.

For procurement, request:

• Tonearm effective mass and the method used to determine it
• Headshell mass, if removable
• Cartridge and mounting-hardware mass
• Cartridge dynamic compliance, including the stated measurement frequency where available
• The supplier’s calculated resonance result for each approved combination
• A validation record for the final assembled platform

Do not approve an upgrade claim solely because a cartridge physically fits the mounting holes. A significantly different mass or compliance can change counterweight margin and the low-frequency behavior of the system. If the product is marketed as cartridge-upgradable, publish a controlled compatibility range or a tested model list.

6. Control Mounting Format, Geometry, and Alignment

The purchasing specification should distinguish physical mounting from correct alignment. A half-inch mount normally uses two screws spaced half an inch apart, but the headshell slots, cartridge body shape, wire clearance, screw length, and alignment range still need confirmation. A removable bayonet-style headshell adds connector dimensions, locking security, contact resistance, and rotational alignment to the control plan.

For a pivoted arm, document at least:

• Effective length
• Pivot-to-spindle distance
• Overhang target and tolerance
• Offset angle or the approved alignment geometry
• Cartridge mounting-slot range
• Headshell azimuth requirement
• Tonearm height or vertical tracking angle provisions, if adjustable
• Clearance above the record and mat

The factory needs a repeatable alignment fixture or approved protractor, not only a visual judgment. The work instruction should define where alignment is checked, how the stylus is protected, which cartridge surfaces may be used as references, and how fasteners are tightened without rotating the cartridge.

Where azimuth or tonearm height is fixed, the supplier must control the related molded, machined, and assembled dimensions. Where they are adjustable, specify adjustment range, locking method, torque or security requirements, and the user-facing instructions.

7. Include Bearings, Lift, and Wiring in the Tonearm Specification

Correct VTF does not compensate for poor bearing behavior. Excessive play, friction, contamination, cable torque, or inconsistent assembly can restrict free movement and change tracking performance.

The control plan should cover:

• Horizontal and vertical bearing play
• Free movement and absence of sticking across the playing arc
• Tonearm return or automatic mechanism drag, where applicable
• Cueing-lift height, descent time, and landing repeatability
• Arm-rest locking security
• Internal wire routing and freedom from pulling force
• Continuity, channel assignment, grounding, and contact integrity
• Mechanical noise transmitted through the arm structure

Ask the Turntable Manufacturer to define measurable limits where practical and approved functional masters where direct measurement is not economical on every unit. Critical characteristics may require in-process fixtures, while others can be sampled under an agreed inspection plan.

8. Build a Production Acceptance Plan

A robust tonearm specification connects design intent to verification. Separate validation tests from routine production checks.

Design and Golden-Sample Validation

Before mass production, validate:

• All approved cartridge and headshell combinations
• Counterweight and VTF adjustment range
• Anti-skate function across the intended operating range
• Alignment geometry and adjustment margin
• Resonance compatibility using documented inputs and, where appropriate, measurement
• Tracking performance with defined test material
• Cueing, manual movement, and automatic functions
• Cable routing, output continuity, hum, and channel orientation
• Transport robustness after the arm is secured in the retail package

Routine Production Controls

Depending on product architecture and risk, routine controls may include:

• Visual confirmation of the correct cartridge, stylus, fasteners, and wiring
• VTF measurement on every unit or at a justified sampling frequency
• Anti-skate setting or mechanism-position confirmation
• Alignment-fixture check
• Free-movement and bearing-play check
• Cueing and arm-rest function
• Left/right channel and continuity test
• Final configuration record linked to lot or serial traceability

Measurement equipment should have defined resolution, calibration status, and work instructions. The factory target, tolerance, test location, and rounding rule should be consistent across the drawing, control plan, inspection report, and user documentation.

9. Questions OEM Buyers Should Put in the RFQ

Before selecting a platform, ask the prospective OEM/ODM partner:

1. Which cartridge models and complete headshell masses have been validated?
2. What are the tonearm’s effective mass, counterweight capacity, and usable VTF range?
3. How is anti-skate generated, adjusted, and verified?
4. Which alignment geometry and production fixture are used?
5. Are azimuth and tonearm height fixed or adjustable, and how are they controlled?
6. What checks are performed on bearings, cueing, wiring, and channel orientation?
7. Which characteristics are tested on every unit, and which are sampled?
8. How are cartridge, stylus, counterweight, and tonearm revisions controlled after approval?
9. What service parts and replacement instructions will remain available?
10. Which records will be included in the approval package and production inspection report?

Clear answers allow buyers to compare suppliers on engineering control rather than on feature-list wording.

From Feature List to Manufacturable Specification

A reliable tonearm program begins with a defined cartridge system and ends with production evidence. Tracking force must be measured, not inferred from a dial. Anti-skate needs a documented mechanism and validation method. Cartridge compatibility must include mass, compliance, mounting, geometry, counterweight capacity, and electrical integration—not merely physical fit.

When these requirements are established before tooling and sample approval, brands can reduce late changes, inconsistent setup, unclear upgrade claims, and avoidable service issues. The result is a Vinyl Turntable platform that is easier to manufacture consistently and easier for distributors, retailers, and service teams to support.
