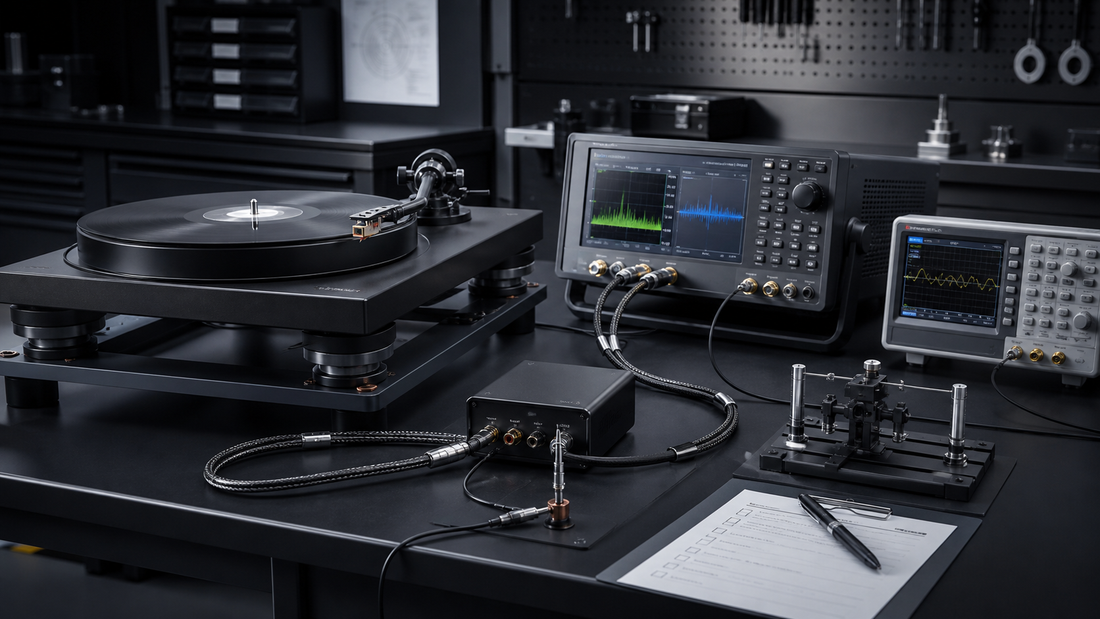

Turntable Hum and Noise Testing in Production: A B2B Acceptance Guide



Hum and noise complaints are difficult to manage when a specification only says “no obvious noise.” The result depends on cartridge type, gain, grounding, cable routing, motor state, power adapter, wireless activity, volume position, connected equipment, and even how the operator touches the product. A unit may sound quiet through one powered speaker and produce objectionable hum through a high-gain phono input.

For OEM buyers, the objective is to turn listening impressions into defined test states and repeatable production controls. The acceptance plan should identify which audio path is under test, how it is terminated, what operating conditions apply, and how the result is compared with a limit or approved reference.

1. Separate Hum, Broadband Noise, and Interference

“Noise” is not a single failure mode. Power-frequency hum and its harmonics can indicate grounding, shielding, transformer, or cable problems. Broadband hiss may come from gain stages, resistors, active devices, or excessive system gain. Motor-control, display, USB, or wireless circuits can add tones, bursts, or digital interference.

The first step in troubleshooting is classification. A spectrum view can help distinguish a power-related series of peaks from wideband noise or a switching-related component. Listening remains useful, but it should be supported by a defined connection and measurement method.

Do not set a universal noise limit without naming the output mode and measurement bandwidth. PHONO, LINE, headphone, Bluetooth, and built-in-speaker paths have different gain structures and expected residual levels.

2. Map Every Operating State

Create a state matrix before designing the fixture. Depending on the product, include:

• Power on, standby, and power off
• Platter stopped and motor running at every supported speed
• Tonearm on the rest, raised, and in the playing area
• PHONO and LINE output modes
• Built-in speakers enabled and muted
• Volume at minimum, reference, and maximum positions
• Bluetooth idle, pairing, connected, and streaming
• USB connected and disconnected
• Headphones inserted and removed
• External power adapter at representative mains conditions

Not every combination requires a production test, but design validation should explore the complete matrix. The results identify the highest-risk states that deserve end-of-line control.

3. Define the Input Condition

A noise measurement is meaningless if the cartridge input changes between tests. Specify whether the test uses the installed cartridge, a shielded termination fixture, a simulated cartridge source, or a test record.

For an installed cartridge, define stylus position, platter state, tonearm location, dust-cover position, and nearby electromagnetic sources. If the stylus rests on a stationary record, mechanical and motor conditions differ from actual playback. A test record can exercise the complete path, but record condition, groove, level, speed, and replacement rules must be controlled.

A cartridge simulator or terminated headshell can improve repeatability for electronics testing. It does not replace complete-product validation because it may not reproduce pickup from the motor, transformer, wiring, or environment.

4. Control Grounding and Cable Configuration

Small phono signals are sensitive to ground paths. The test instruction should show every connection, including RCA shields, chassis reference, protective earth where applicable, USB ground, external ground lead, and power-supply arrangement.

If the product provides a PHONO output, test it with the intended external ground connection and with the specified phono load. If LINE mode uses an internal preamplifier, confirm how the signal reference changes when the selector moves. Detachable cables should be tested with the approved production cable because capacitance, shielding, connector fit, and continuity can affect the result.

Avoid uncontrolled bench grounds. Oscilloscopes, analyzers, computers, and powered speakers may create additional paths. Document the fixture topology and use isolation only when it is appropriate and safe.

5. Test Motors, Power Supplies, and Wireless Modules

Noise performance must be checked with potential interference sources active. Compare motor stopped with 33⅓ and 45 RPM operation. Where an automatic mechanism is fitted, include start, cue, return, and stop cycles. Listen and measure for changes as the tonearm crosses the playing arc.

External adapters are part of the system. Approve the adapter model, cable, connector, polarity, and grounding behavior together with the turntable. A substitute adapter can change conducted or radiated noise even when its voltage and current rating appear compatible.

For Bluetooth-equipped products, test pairing, connected-idle, and streaming states. Confirm whether RF activity appears in the analog output or built-in speakers. USB interfaces should be checked with a representative host connection because computer ground and data activity can expose different problems.

6. Specify the Measurement Method

An actionable specification states:

• Output and operating state under test
• Input or cartridge condition
• Receiving load and grounding arrangement
• Gain and volume settings
• Measurement bandwidth and any weighting
• Detector or averaging method
• Reference level used for signal-to-noise calculations
• Warm-up and stabilization time
• Equipment resolution and calibration status
• Pass/fail limit and rounding rule

Record absolute residual level when useful, but also consider signal-to-noise ratio under a defined reference signal. The two answer different questions. A product can show a favorable ratio because its output is high while still producing audible idle noise in a sensitive system.

Frequency-domain limits can supplement a single broadband number. A maximum permitted component at known power or switching frequencies can make production troubleshooting faster. Numerical limits must come from the approved circuit, product positioning, measurement capability, and golden-sample validation—not from a generic checklist.

7. Combine Instrument Tests with Controlled Listening

Instrumentation improves repeatability, but some intermittent or modulated interference is easier to recognize by ear. Use a controlled listening test with defined headphones or speakers, connection mode, volume, environment, and program sequence.

Operators should not decide against a vague “acceptable” standard. Provide defect examples or approved boundary samples for hum, hiss, ticking, motor breakthrough, channel imbalance, intermittent connectors, and wireless bursts. Train operators to classify the symptom before rework.

Keep the listening time practical. A short sequence designed around known risks is more sustainable than an open-ended listening session that varies by operator and shift.

8. Design the Production Control Plan

Separate full validation from routine production tests.

Design and Golden-Sample Validation

Use laboratory equipment to characterize all audio routes and high-risk operating states. Test approved cartridges, adapters, cables, firmware, wireless modules, and mechanical configurations. Retain spectra, connection diagrams, equipment settings, and boundary results.

In-Process Controls

Check ground bonds, harness routing, shield connections, soldering, motor wiring, PCB versions, and cable placement before the cabinet is closed. Visual fixtures and routing gauges can prevent faults that are expensive to diagnose at final test.

End-of-Line Controls

A production station may verify channel output, obvious hum or hiss, selector operation, motor-state interference, and key multifunction routes. Automated limits should include fixture self-checks and a method for identifying fixture noise.

Periodic Audit

At an agreed frequency, repeat detailed laboratory measurements on sampled units. Audits help detect gradual component, process, adapter, or tooling changes that a short functional test may miss.

9. Link Failures to Corrective Action

When a unit fails, record the exact state, channel, spectrum or symptom, fixture ID, operator, lot, and component configuration. “Noise NG” is not enough for useful analysis.

Create a fault tree covering cartridge connection, ground lead, RCA cable, harness position, motor, adapter, preamplifier PCB, wireless module, connector, solder joint, and mechanical vibration. Repaired units should repeat the original failed condition and the complete required final test.

Trend results by lot and configuration. A gradual shift that remains inside the limit can still signal an emerging process or supplier change.

10. Questions OEM Buyers Should Ask

1. Which noise states are validated for each output route?
2. How are cartridge input, load, grounding, bandwidth, and weighting defined?
3. Which adapter, cable, and external equipment form the approved setup?
4. How are motor, USB, Bluetooth, and automatic-mechanism states tested?
5. Which checks occur in process, at end of line, and during periodic audit?
6. How is fixture noise separated from product noise?
7. What boundary samples and defect examples train operators?
8. How are results linked to lot, PCB, firmware, adapter, and rework history?

From Subjective Complaint to Manufacturing Evidence

Reliable hum and noise control starts by defining states, inputs, grounds, loads, and measurement conditions. A complete plan combines circuit-level checks, mechanical and wireless operating states, calibrated measurements, controlled listening, traceable production data, and periodic audits.

This approach gives B2B buyers clearer approval evidence and gives the Turntable Manufacturer a faster route from symptom to root cause. It also reduces the risk that a product judged quiet on one bench becomes noisy in the customer’s actual system.
