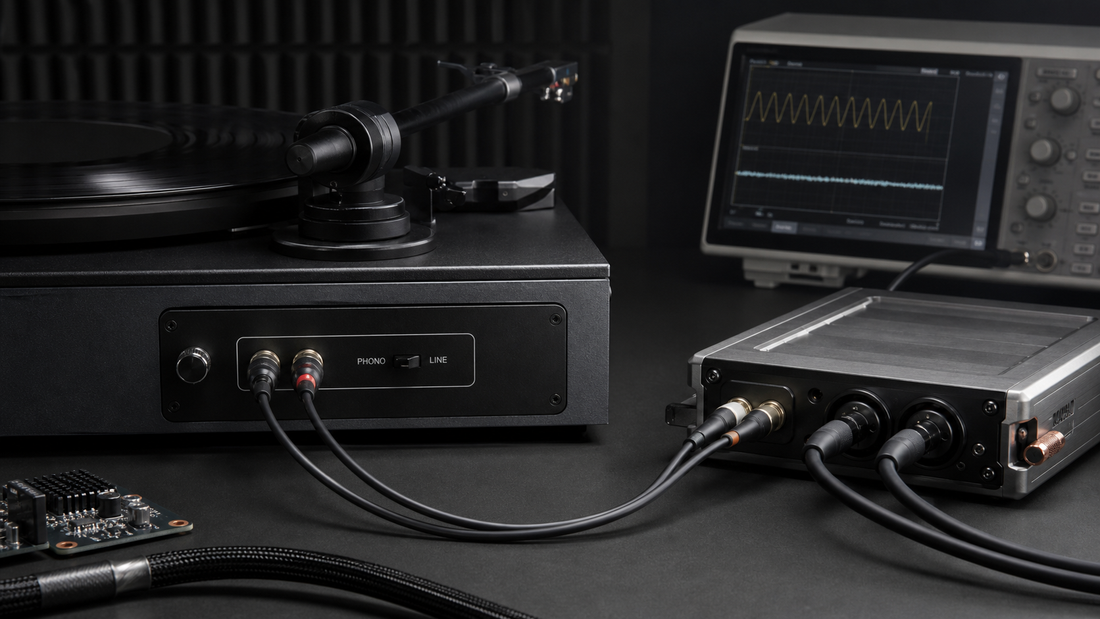

Phono vs Line Output in OEM Turntables: A B2B Signal-Path Specification Guide



“Phono/Line switch” appears simple on a product specification, but it represents several engineering decisions. The cartridge output, phono equalization, gain, overload margin, grounding, switching circuit, connector labels, and instructions must operate as one system. If an OEM brief only asks for “RCA output,” the sample may work in one demonstration setup while creating low volume, distortion, hum, or support problems in another.

For brands, distributors, and sourcing teams, the objective is not to choose the greatest number of output modes. It is to define the signal path that matches the intended customer equipment and to establish measurable acceptance conditions for production.

1. Understand What PHONO and LINE Actually Mean

A magnetic phono cartridge produces a relatively small signal that normally requires gain and frequency equalization before it can drive a conventional line-level input. A PHONO output sends that cartridge-level signal to an external phono stage or an amplifier with a compatible phono input.

A LINE output routes the cartridge signal through a built-in phono preamplifier. The internal stage provides gain and applies the required playback equalization, allowing connection to an AUX, LINE, powered-speaker, or other appropriate high-level input.

These output names describe different signal conditions, not simply two connector choices. Audio-Technica’s official turntable instructions illustrate the practical distinction: PHONO mode is connected to a phono input, while LINE mode is connected to an AUX or other high-level input. The same instructions warn that a LINE output connected to a PHONO input can be excessively loud or distorted, while a PHONO output connected to a LINE input can be too quiet.

2. Select the Architecture from the Use Case

Three common OEM architectures are available.

Phono-Only Output

This approach can suit component-style Vinyl Turntables intended for amplifiers or external phono preamplifiers. It reduces internal analog circuitry, but the buyer must make the external equipment requirement unmistakable. Packaging and manuals should not imply direct compatibility with every powered speaker or AUX input.

Line-Only Output

A built-in phono stage can simplify connection for broad retail channels and integrated systems. However, the internal preamplifier becomes part of the product’s audio performance and must be specified, validated, and controlled through the bill of materials.

Switchable Phono/Line Output

Switchable output offers wider system compatibility, but adds routing, labeling, and misuse risks. Buyers should confirm whether PHONO mode is a true bypass of the internal preamplifier, whether any protection or switching components remain in the path, and how ground reference changes between modes.

The architecture should follow the product brief. A switch is not automatically an upgrade if users cannot identify the correct receiving input or if the bypass path is poorly controlled.

3. Define the Cartridge and Input Loading Together

The phono stage cannot be specified independently from the cartridge. The RFQ should identify the approved cartridge model or electrical envelope, including cartridge type, nominal output, recommended load resistance, recommended load capacitance where applicable, and channel characteristics.

For an MM-based platform, the total capacitive load may include the tonearm wire, internal harness, PCB, switch, RCA cable, and receiving phono input. Buyers do not need to impose an arbitrary universal value, but they should require the supplier to document the assumed load and validate the approved cartridge in the completed system.

If alternative cartridges are permitted, establish an approved compatibility matrix. A mechanical fit does not prove electrical compatibility. A cartridge change can affect required gain, loading, overload behavior, noise, and frequency response.

4. Convert “Built-In Preamp” into Measurable Requirements

The phrase “built-in phono preamp” is not an acceptance specification. Define the conditions under which the following characteristics are measured:

• Nominal input level and reference frequency
• Nominal line-output level and load
• Gain and gain tolerance by channel
• Playback equalization response and tolerance
• Maximum input before a defined distortion limit
• Signal-to-noise or residual-noise method
• Total harmonic distortion under stated input and load conditions
• Channel balance and channel separation
• Input impedance and capacitance
• Output impedance and minimum recommended load
• Power-supply condition and warm-up time

Avoid copying a number from another product without matching the measurement method. Frequency range, weighting, source impedance, bandwidth, and grounding arrangement can materially change results. The approved specification should state the test fixture and equipment as well as the limit.

Overload margin deserves special attention. Cartridge output rises with recorded velocity and program peaks. A preamplifier that meets nominal gain but clips easily can sound harsh on demanding records. Validation should therefore include an agreed high-level input test, not only a nominal 1 kHz measurement.

5. Verify the PHONO Bypass Path

On a switchable design, request a signal-path diagram for both switch positions. Determine whether PHONO mode routes directly from the cartridge to the output or passes through coupling components, protection devices, PCB traces, relays, or an unpowered active stage.

The bypass assessment should include:

• Continuity and correct left/right channel assignment
• Series resistance and unintended loading
• Added capacitance from wiring and PCB routing
• Crosstalk between active and bypass paths
• Behavior when product power is on and off
• Switching noise and safe operating instructions
• Contact reliability after repeated operation

“Passive” and “true bypass” should only be used in marketing copy if the approved circuit supports those terms. Otherwise, describe the output function without making an unnecessary topology claim.

6. Engineer Grounding and Hum Control

Phono signals are small enough that grounding, shielding, transformer location, wireless modules, display circuits, motor drive, and cable routing can become audible. Grounding must be evaluated in the complete product, not only on the preamplifier PCB.

For PHONO mode, define whether a separate ground lead is supplied and where it connects internally. For LINE mode, document the signal reference and the intended external connection. If a detachable RCA cable is used, specify connector plating, contact retention, cable capacitance where relevant, shield construction, and strain relief.

Test representative systems, including an external phono input for PHONO mode and a line-level amplifier or powered speaker for LINE mode. Evaluate idle noise, motor running, tonearm moving, Bluetooth active if fitted, power adapter orientation, and both switch positions. A single quiet laboratory combination is not enough to characterize field risk.

7. Control Routing for USB, Bluetooth, and Built-In Speakers

Many OEM turntables combine analog output with USB recording, Bluetooth transmission, headphone output, or internal speakers. The specification must identify where each function takes its signal.

Ask for a block diagram showing:

• Cartridge input
• Phono equalizer and gain stage
• PHONO/LINE switch
• Analog-to-digital converter
• Bluetooth encoder and module
• Volume control and power amplifier
• RCA, USB, headphone, and speaker outputs

Then define simultaneous-operation rules. Does switching to PHONO disable Bluetooth? Is USB level fixed or affected by volume? Does the RCA line output mute when headphones are inserted? Can built-in speakers be disabled? These are product behaviors that require approval and functional tests.

8. Make Labels and Instructions Part of Engineering Approval

Incorrect connection often looks like a product defect. Rear-panel artwork should place PHONO and LINE labels where they remain visible after assembly. The wording should match the manual, quick-start guide, carton feature panel, product page, and support material.

A useful quick-start instruction states the receiving input explicitly:

• Use PHONO when connecting to a compatible PHONO input or external phono preamplifier.
• Use LINE when connecting to AUX, LINE, powered speakers, or another suitable high-level input.

Do not describe every RCA socket as interchangeable. If a separate ground lead is required in PHONO mode, show it in the connection diagram. If the internal stage supports only the supplied cartridge type, state that limitation.

9. Build an OEM Acceptance Matrix

Before golden-sample approval, create a matrix covering mode, receiving equipment, power state, source, and expected output. At minimum, verify:

1. PHONO output into the approved phono test load.
2. LINE output into the approved line-level load.
3. Correct level relationship between modes.
4. Left/right channel assignment and phase consistency.
5. Frequency response under the specified test conditions.
6. Noise and hum in idle and operating states.
7. Overload behavior at the agreed high-level input.
8. Switch operation, labeling, and contact reliability.
9. Ground-lead function where supplied.
10. Interaction with USB, Bluetooth, headphones, or internal speakers.

Routine production testing may not repeat every design-validation measurement. It should, however, confirm the correct PCB and cartridge configuration, both-channel output, mode switching, obvious noise faults, and required functional routes. Periodic audits can cover detailed analog performance using calibrated equipment.

10. Questions to Include in the RFQ

Ask each prospective Turntable Manufacturer:

• Which cartridge and loading assumptions define the circuit?
• What are the measured gain, equalization, noise, distortion, and overload limits?
• Is PHONO mode a documented bypass, and what remains in the path?
• How are signal ground, chassis ground, shields, and any external ground lead connected?
• Which outputs operate simultaneously in each mode?
• What is tested on every unit, and what is verified by periodic audit?
• How are substitutions to op-amps, passive components, switches, cables, or power supplies controlled?
• Which diagrams, test reports, and firmware versions form part of the golden sample?

Comparable answers reveal more than a feature checklist. They show whether the supplier controls the complete signal path.

Specify the Connection Experience, Not Just the Switch

Phono and line outputs serve different receiving equipment and require different signal conditions. A reliable OEM/ODM brief connects the cartridge, loading, gain, equalization, bypass topology, grounding, multifunction routing, labels, and test method into one controlled specification.

That work reduces connection complaints and prevents a flexible feature from becoming an inconsistent user experience. It also gives buyers a clearer basis for comparing samples and approving production.
